RaspberryPi GNC and Navigation
Inertial State Estimation & 9-DOF Sensor Fusion
Overview
ROLE: Team Lead (Team 3) | INSTITUTION: USC Astronautical Engineering (ASTE-101)
As part of ASTE101's final project, students were given a RaspberryPi Zero module with a BerryIMU attached to it. The project involved the development of a real-time inertial navigation system (INS) designed to estimate the orientation and position of a 9-DOF flight controller. I oversaw the process and designed the software architecture as well as the implementation of noise-mitigation protocols.
The Navigation Stack
- Orientation Filter: Deployed a Complementary Filter to fuse high-frequency Angular Velocity ($\omega$) with low-frequency Accelerometer/Magnetometer references.
- Dynamic Rotation: Calculated a Direction Cosine Matrix (DCM) to rotate body-fixed acceleration vectors into the North-East-Down (NED) world frame.
- Drift Mitigation: Engineered a computational failsafe using an acceleration deadzone ($0.15 \, m/s^2$) and velocity decay constant ($0.98$) to stabilize the integration loop.
Logic Module
# [V&V] Fusing high-freq gyro with low-freq acc references
# Alpha = 0.75 for coordinate finder, 0.98 for navigation
roll = ALPHA * (roll + gx * dt) + (1 - ALPHA) * roll_acc
pitch = ALPHA * (pitch + gy * dt) + (1 - ALPHA) * pitch_acc
yaw = ALPHA * (yaw + gz * dt) + (1 - ALPHA) * yaw_mag
# [V&V] BODY-TO-WORLD FRAME ROTATION
# Translating IMU orientation into North-East-Down (NED) world frame
# Constructing Rotation Matrix (R) using Yaw, Pitch, Roll
R = Rz(yaw) @ Ry(pitch) @ Rx(roll)
# Transforming body acceleration to world frame and subtracting gravity
acc_world = R @ np.array([ax_m, ay_m, az_m]) - gravity
INTENT: Resolves the orientation of the vehicle relative to Earth's gravity vector, allowing for accurate trajectory mapping in three dimensions.
# [V&V] NOISE_MITIGATION & POSITION_STABILIZATION
# 01: ACCEL_DEADZONE - Filter low-level vibrational noise
if np.linalg.norm(acc_world) < 0.15:
acc_world = np.zeros(3)
# 02: VELOCITY_DECAY - Bleed off integration errors to prevent divergence
vel_world = (vel_world + acc_world * dt) * 0.98
pos_world = pos_world + vel_world * dt
INTENT: Implements a noise-floor threshold and a decay constant to counteract the "random walk" inherent in double-integration of IMU data.
Telemetry & Hardware

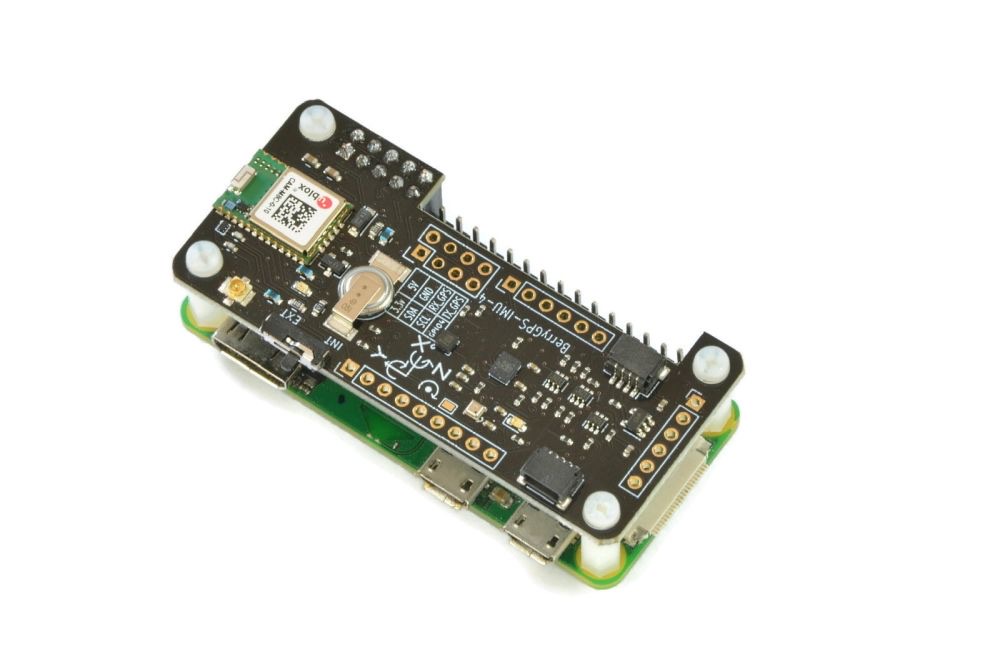

Fig 1: Integrated IMU and Raspberry Pi hardware stack.
Post-Mission Analysis
By applying a customized alpha coefficient ($\alpha=0.75$), the system successfully resolved attitude within a 2.5% error margin during dynamic testing. This project served as a foundational proof-of-concept for autonomous guidance logic in amateur rocketry.
